Miller big blue 500X MMA stick Mig 500Amp DC Welding Machine diesel welder generator

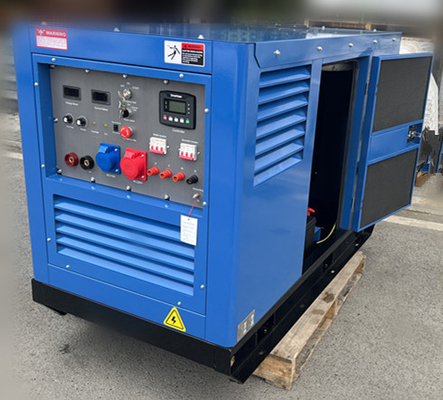

Large Image : Miller big blue 500X MMA stick Mig 500Amp DC Welding Machine diesel welder generator

Product Details:

Place of Origin:	China
Brand Name:	GENOR POWER
Certification:	ISO9001:2008, CE
Model Number:	GNDML500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 20 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	200 sets Per Month

Contact Now

Detailed Product Description

Product Name:	Miller Diesel Engine Welder	Welding Type:	Arc Mig
Welding Voltage:	30 To 60 V	Engine RPM:	1800rpm
Frequency:	60Hz	Welding Current:	500amp
Highlight:	Diesel Motor Welder DC Generator Set , Arc Welding DC Generator Set , DC Generator Set With Yanmar Engine

Miller big blue 500X MMA stick Mig 500Amp DC Welding Machine diesel welder generator

The diesel welding machine is equipped with heavy duty diesel engine driven welding machines with MMA/TIG/FCAW function, and Strong auxiliary power:35kw .

The diesel welder adopt advanced inverter soft switch technology, PWM control technology, and negative feedback control technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

1. Electric Starter ensures easy starting

2. Separate welding range with fine adjustment in each range

3. Great Welding Performance

4. Auxiliary power while welding

5. 700 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding

6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

Welding Processes	MMA			TIG			FCAW
Open Circuit Voltage (V)	75			75			75
Current Range (A)	one-post 40-800A - two-post 20 - 400A (on each side)
Duty Cycle	100%	80%	60%	100%	80%	60%	100%	80%	60%
External Characteristic Curve	Drop Characteristic			Drop Characteristic			Flat Characteristic
Generator output
Power	35kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz / 60Hz
Phase	Three Phase					Single Phase
Output Voltage/Power	AC 400V/35Kw					AC 230V/6Kw
Engine
Type	6 stroke , direct injection , 4 cylinders
Fuel	Diesel
Rated Power	65Kw
Low Temperature	Pre-heated Start
Warning Type	Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity	60L
Cooling Method	Water-cooled
Fuel Consumption	5.6L/hr
Complete appliance

Miller big blue 500X MMA stick Mig 500Amp DC Welding Machine diesel welder generator 0

Our company

Miller big blue 500X MMA stick Mig 500Amp DC Welding Machine diesel welder generator 1

Contact Supplier

Miller big blue 500X MMA stick Mig 500Amp DC Welding Machine diesel welder generator 2

Miller big blue 500X MMA stick Mig 500Amp DC Welding Machine diesel welder generator 3
