260A 280A 400Amps liquid cooling engine welder diesel generator welding machine with IGBT transistors control

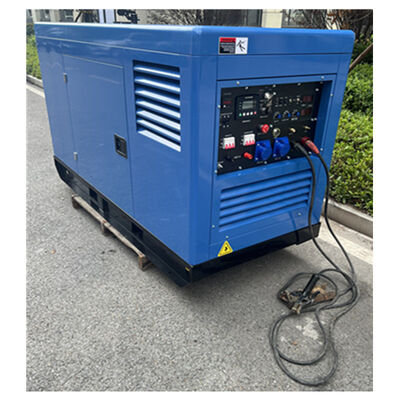

Large Image : 260A 280A 400Amps liquid cooling engine welder diesel generator welding machine with IGBT transistors control

Product Details:

Place of Origin:	China
Brand Name:	GENOR POWER
Certification:	ISO , CE, EPA
Model Number:	ONRWL400

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD$4139 to USD$7225
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 20 days
Payment Terms:	T/T ,L/C ,Western Union
Supply Ability:	200/sets per Month

Contact Now

Detailed Product Description

Product Name:	400A Diesel Welder Generator	Engine Type:	Industrial Heavy Duty Enigne
Welding Current:	400 Ampere	Weld Current Range:	20-400A
Weld Voltage:	15 - 40V	Cooling System:	Water Cooled
Duty Cycle:	60%	Welding Process:	Stick , Mig , Tig , Arc Gouging
Weld Mode:	Single / Dual	Application:	Construction , Mining , Pipe Welding
Highlight:	260A diesel welding generator , IGBT liquid cooling welder , 400A engine welder machine

260A 280A 400Amps Liquid Cooling Engine Welder Diesel Generator

This advanced diesel-powered welding machine features IGBT transistor control and combines welding capabilities with generator functionality. The engine-driven welder utilizes a diesel-fueled engine to deliver power for Stick, TIG, MIG, and Flux-Cored welding applications, making it ideal for high-quality pipeline welding and various other welding methods.

Designed for operation in diverse environments from hot to cold climates, this welding plant incorporates advanced inverter soft switch technology, PWM control technology, and negative feedback control technology, ensuring excellent dynamic quality and welding performance across the full voltage/current regulation range.

Welding Specifications

Welding Current Range	20A - 400A
Rated Welding Current	400A
Operating Voltage	> 36V
No-load Voltage	70V - 90V

Generator Output

Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Three Phase Output	AC 380V/15Kw
Single Phase Output	AC 220V/5Kw

Engine Specifications

Engine Type	4 stroke, 4 cylinder, direct injection, heavy duty diesel engine
Fuel	Diesel
Engine Power	Not less than 30/40 kW/hp
Rotation Speed	Not more than 1800 rpm
Engine Cooling	Liquid/Air
Climatic Version	N1

Technical Specifications

Rated welding current: 400 A (at Pn-60%)
Rated operating voltage: Not less than 36V
Welding current regulation limits: 60A - 400A
No-load voltage: 70V - 90V
Fuel tank capacity: 60L - 120L
Pump efficiency: Not less than 70%

Auxiliary Power Generator

Power: Not more than 4 kW
Rated voltage: Not more than 230V (at 50 Hz)

Additional Equipment & Features

Ballast rheostat
Complete welding accessories: cables, electrode holder, welder's shield
"Vector" type cutter (510 mm length) for manual steel cutting (3-300 mm thickness)
Gas and oxygen reducer with propane and oxygen hoses (20 m each)
Extended maintenance tool set with additional tool box
Preheating system for cold starts below -25°C
Weather protection shelters
Power tools for edge machining
Light alarm and automatic emergency protection system
Built-in auxiliary generator (220/380V, 4-7 kVA)
Night work lamp and tire pumping device
Electric fuel level indicator and hour counter
Remote start cables and electrode drying device
Anti-rollback stops (2 pcs) and spare wheel
Socket ONC-VN-1-7/30-P1

The trailer-chassis is designed for vehicle operation with traction devices according to GOST 2349, electrical outlets according to GOST 9200, safety chain attachments, and front/rear stops for horizontal positioning stability.
