30pcs Sockets Water Cooling 460V 60Hz Reefer Container Genset Diesel Generator Power Pack

I'm Online Chat Now

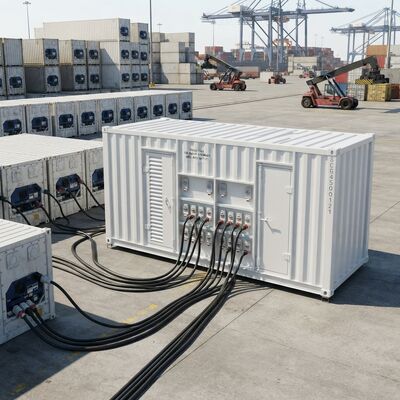

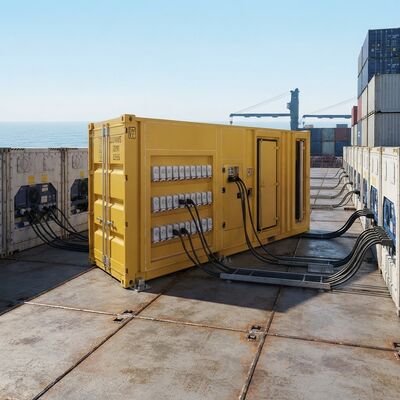

30pcs Sockets Water Cooling 460V 60Hz Reefer Container Genset Diesel Generator Power Pack

30pcs Sockets Water Cooling 460V 60Hz Reefer Container Genset Diesel Generator Power Pack

Large Image :  30pcs Sockets Water Cooling 460V 60Hz Reefer Container Genset Diesel Generator Power Pack

Product Details:
Place of Origin: China
Brand Name: Cummins
Certification: ISO9001:2008, CE
Model Number: CRC500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD$29325 to USD$48635
Packaging Details: Wooden package
Delivery Time: within 15 days
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 200 units / month
Detailed Product Description
Name: Generator Set Power Pack For Reefer Container Cooling System: Water Cooling
Reefer Sockets: 30pcs Color: Blue
Fuel Tank: 2000L Container: 20ft
Voltage: 460V , 60Hz

Dubai Vessel Marine Type 30pcs Sockets 20ft Diesel Engine Stamford genset Remote Control Container Type Power Pack for Reefer container

This reefer container power pack genset is powered by a water-cooled, heavy-duty, industrial type Cummins diesel engine that is closed coupled via SAE flexible disk/flange coupling to the brushless, synchronous, self-regulated alternator. The complete assembly—including engine, alternator, radiator, reefer sockets and control panel—is mounted on a steel base frame with four lifting attachments for easy transportation. The generator set frame is insulated from the container floor by anti-vibration mountings. Manufactured and rated according to continuous power output as outlined in ISO-8528, with overload power in accordance with ISO-3046.
Power Pack Engine Features
  • Cummins Multi-cylinder in-line or veer engine, 4-stroke, direct injection
  • Turbocharged, water cooled or turbocharged with air intercooler
  • Electronic governing
  • Fuel injection pump
  • Electric motor starting system
  • Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
  • Low discharge and low fuel consumption
Alternator Features
  • World famous brand Stamford AC alternator
  • Brushless, 4 poles, rotation magnet
  • IP23 enclosure standard for all industrial alternators
  • H class insulation system
  • AVR self-regulated, voltage regulation rate: ≤±1%
  • Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
  • Wide range of flange adaptors and single bearing disc coupling
  • Radio interference restraining accords with VDE0875-N and ISO8528
Power Pack Control System
  • Automatic alarm system with acousto-optics alarm and arrestor for start defeat, water over temperature, low oil pressure, over speed, over load and over current
  • Operation display: unit voltage, tri-phase load current, frequency, water temperature, oil pressure, fuel level, and fuel temperature
  • Audible and visual alarm lamps and buzzers
  • Starting system: DC alternator used to start engine
  • Short circuit protection: MCCB air switch
  • Cooling system: combined cooling water tank fitted to meet radiation requirements at ambient temperature 40°C
  • Filter system: oil, fuel and air filter
Power Pack Genset Advantages
  • Special structure design with perfect portability
  • Reliable dynamic performance
  • Easy installation and connection
  • Low noise running within 60dBA at 7 meters
  • Low fuel consumption
  • Compact and attractive aesthetic outlook
  • 15 months or 1200 running hours warranty (whichever comes first)
  • ISO and CE certificated
