Carrier Transicold GENOR POWER GCO500 Silent Enclosed Diesel Engine Power Pack 40 Sockets Gensets for Reefer Containers

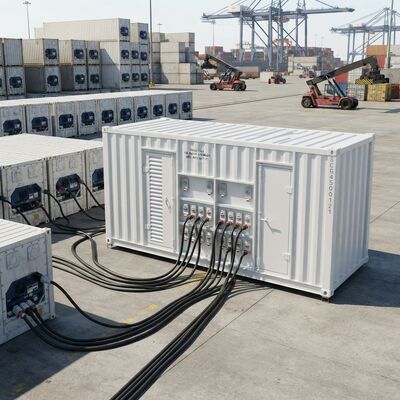

Large Image : Carrier Transicold GENOR POWER GCO500 Silent Enclosed Diesel Engine Power Pack 40 Sockets Gensets for Reefer Containers

Product Details:

Place of Origin:	China
Brand Name:	Cummins
Certification:	ISO9001:2008, CE
Model Number:	CRC500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$29635 to USD$53265
Packaging Details:	Wooden package
Delivery Time:	within 15 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Product Name:	Diesel Genset For Reefer Container	Start System:	Electric Auto Start
Cooling System:	Water Cooling	Reefer Sockets:	40pcs
Engine Brand:	Cummins
Highlight:	Carrier Transicold GCO500 diesel genset , silent enclosed reefer container generator , 40 sockets reefer container power pack

Carrier Transicold GENOR POWER GCO500 Silent Enclosed Diesel Engine Power Pack

40 Sockets Gensets for Reefer Containers

Product Overview

This reefer container power pack genset is specifically engineered for rail applications, shipping operations, and stationary terminal use. Designed to supply reliable electrical power for ISO container refrigeration systems, the unit features a robust construction with industrial-grade components for continuous operation.

Technical Specifications

Powered by a water-cooled, heavy-duty industrial Cummins diesel engine coupled via SAE flexible disk/flange coupling to a Marathon brushless, synchronous, self-regulated alternator. The complete assembly—including engine, alternator, radiator, and control panel—is mounted on a steel base frame with four lifting attachments for easy transport.

The generator set frame is insulated from container floors using anti-vibration mountings, while safety shutdown systems and electrical data monitoring are managed by the HGM6110 controller. Manufactured and rated according to ISO-8528 for continuous power output and ISO-3046 for overload capacity.

Engine Features

Multi-cylinder in-line or V-engine configuration, 4-stroke direct injection
Turbocharged with water cooling or turbocharged with air intercooler
Electronic governing system for precise control
Fuel injection pump for optimal performance
Electric motor starting system
Forged steel crankshaft with cast iron cylinder and replaceable wet-type cylinder liners
Low discharge emissions and minimal fuel consumption

Alternator Features

World-renowned Stamford AC alternator
Brushless design with 4 poles and rotating magnet
IP21-23 (NEMA1) enclosure standard for industrial applications
H-class insulation system
AVR self-regulated with voltage regulation rate ≤±1%
Simple installation and maintenance with accessible terminals and components
Wide range of flange adaptors and single bearing disc coupling
Radio interference suppression compliant with VDE0875-N and ISO8528

Control System Features

Automatic Alarm System: Comprehensive acousto-optic alarm system with arrestor protection for start defeat, water overtemperature, low oil pressure, overspeed, overload, and overcurrent conditions.

Operation Display: Complete monitoring of unit voltage, three-phase load current, frequency, water temperature, oil pressure, fuel level, and fuel temperature with audible and visual alarm indicators.

Starting System: DC alternator for reliable engine starting

Protection Systems: MCCB air switch for short circuit protection

Cooling System: Combined cooling water tank designed for radiation at ambient temperatures up to 40°C

Filtration: Comprehensive oil, fuel, and air filter systems

Accessories: Includes exhaust elbow, bellows, and muffler

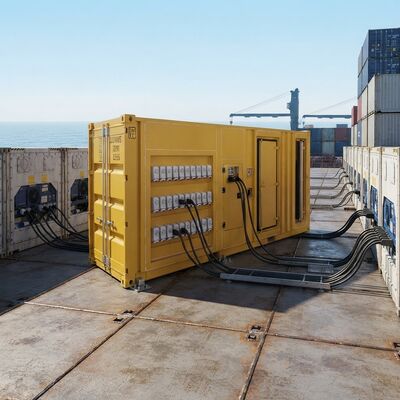

Product Images
