Refrigeration Chains Container Power Pack Genset 500kva 300kw for Diesel Generator Stamford 1800 RPM Reefer Sockets Plugs

Large Image : Refrigeration Chains Container Power Pack Genset 500kva 300kw for Diesel Generator Stamford 1800 RPM Reefer Sockets Plugs

Product Details:

Place of Origin:	China
Brand Name:	Cummins
Certification:	ISO9001:2008, CE
Model Number:	CRC500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$29635 to USD$53265
Packaging Details:	Wooden package
Delivery Time:	within 15 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Product Name:	Diesel Genset For Reefer Container	Start System:	Electric Auto Start
Cooling System:	Water Cooling	Reefer Sockets:	40pcs
Engine Brand:	Cummins
Highlight:	500kva diesel generator for reefer containers , 300kw refrigeration container power pack , stamford reefer sockets plugs genset

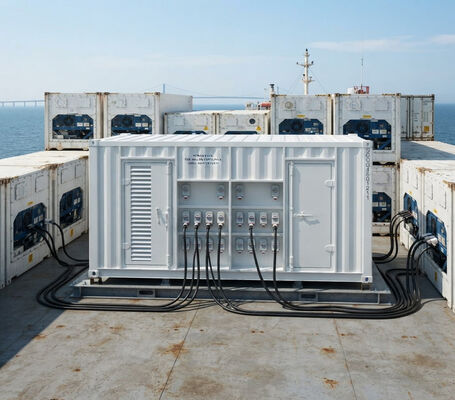

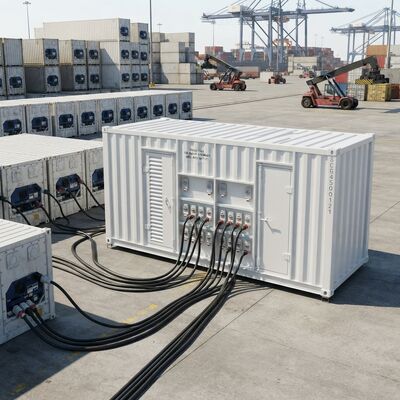

Refrigeration Chains Container Power Pack Genset 500kVA 300kW

This specialized diesel generator set is designed for rail applications, shipping operations, and stationary terminal use. The genset provides reliable electrical power for ISO container refrigeration systems, ensuring optimal temperature control for perishable goods during transport and storage.

Technical Specifications

The power pack features a water-cooled, heavy-duty industrial CUMMINS diesel engine coupled via SAE flexible disk/flange coupling to a brushless, synchronous, self-regulated alternator. The complete assembly—including engine, alternator, radiator, and control panel—is mounted on a steel base frame with four lifting attachments for easy handling. The generator set frame is insulated from the container floor by anti-vibration mountings to minimize operational noise and vibration.

Manufactured and rated according to ISO-8528 for continuous power output and ISO-3046 for overload power capabilities. The system operates at 1800 RPM and includes reefer sockets and plugs for direct container connection.

Engine Features

Multi-cylinder in-line or V-engine configuration, 4-stroke direct injection
Turbocharged, water-cooled or turbocharged with air intercooler
Electronic governing system for precise speed control
Advanced fuel injection pump
Electric motor starting system
Forged steel crankshaft with cast iron cylinder and replaceable wet type cylinder liner
Low emissions and optimized fuel consumption

Alternator Features

World-renowned Stamford AC alternator
Brushless design with 4 poles and rotating magnet
IP21-23 (NEMA1) enclosure standard for industrial applications
H class insulation system for maximum reliability
AVR self-regulated with voltage regulation rate: ≤±1%
Easy installation and maintenance with accessible terminals, rotating diodes, and coupling bolts
Wide range of flange adaptors and single bearing disc coupling
Radio interference restraining compliant with VDE0875-N and ISO8528 standards

Control System Features

Automatic Alarm System: Comprehensive acousto-optic alarm system with arrestor protection for start defeat, water overtemperature, low oil pressure, overspeed, overload, and overcurrent conditions.

Operation Display: Comprehensive monitoring including:

Unit voltage, three-phase load current, and frequency display
Water temperature and oil pressure monitoring
Fuel level and fuel temperature indicators
Audible and visual alarm lamps and buzzers

Additional Systems: DC alternator starting system, MCCB air switch for short circuit protection, combined cooling water tank designed for 40°C ambient temperature operation, comprehensive filtration system (oil, fuel, and air filters), and essential accessories including exhaust elbow, bellow, and muffler.
