Refrigeration Vessel Power Pack 20pcs Reefer Socket Plugs generator 350 kW Marine Type Diesel Genset for reefer Container

Large Image : Refrigeration Vessel Power Pack 20pcs Reefer Socket Plugs generator 350 kW Marine Type Diesel Genset for reefer Container

Product Details:

Place of Origin:	China
Brand Name:	Cummins
Certification:	ISO9001:2008, CE
Model Number:	CRC500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$29635 to USD$53265
Packaging Details:	Wooden package
Delivery Time:	within 15 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	200 units / month

Contact Now

Detailed Product Description

Product Name:	Diesel Genset For Reefer Container	Start System:	Electric Auto Start
Cooling System:	Water Cooling	Reefer Sockets:	40pcs
Engine Brand:	Cummins
Highlight:	marine diesel genset for reefer container , reefer socket plugs power pack , 350 kW refrigeration vessel generator

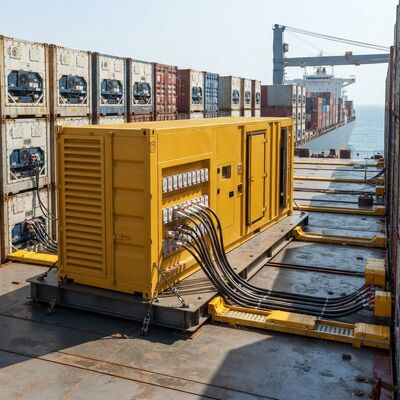

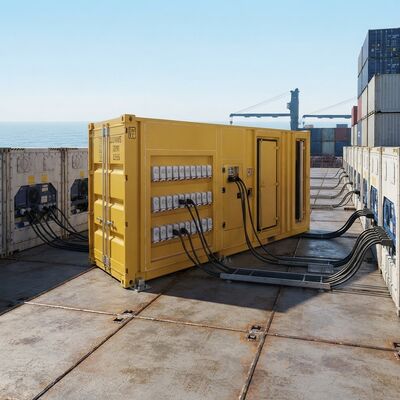

Refrigeration Vessel Power Pack with 350 kW Marine Diesel Genset

This reefer container generator set features a 350 kW marine-type diesel genset with 20 reefer socket plugs, specifically designed for powering ISO container refrigeration systems in rail, shipping, and stationary terminal applications.

The generator set is powered by a water-cooled, heavy-duty industrial CUMMINS diesel engine coupled via SAE flexible disk/flange coupling to a brushless, synchronous, self-regulated alternator. The complete assembly—including engine, alternator, radiator, and control panel—is mounted on a steel base frame with four lifting attachments and anti-vibration mountings for container floor insulation.

Manufactured and rated according to ISO-8528 for continuous power output and ISO-3046 for overload power, the system includes comprehensive safety shutdown and electrical monitoring via the HGM6110 controller.

Engine Specifications

Multi-cylinder in-line or V-engine configuration, 4-stroke direct injection
Turbocharged with water cooling or turbocharged with air intercooler
Electronic governing system
Precision fuel injection pump
Electric motor starting system
Forged steel crankshaft with cast iron cylinder and replaceable wet-type cylinder liners
Optimized for low discharge and minimal fuel consumption

Alternator Features

World-renowned Stamford brand AC alternator
Brushless design with 4-pole rotating magnet
IP21-23 (NEMA1) enclosure standard for industrial applications
H-class insulation system
AVR self-regulated with voltage regulation ≤±1%
Easy maintenance access to terminals, rotating diodes, and coupling bolts
Comprehensive range of flange adaptors and single bearing disc couplings
Radio interference suppression compliant with VDE0875-N and ISO8528

Control & Safety Systems

Automatic Alarm & Monitoring

Acousto-optic alarm system for start defeat, water overtemperature, low oil pressure, overspeed, overload, and overcurrent conditions
Comprehensive operation display including:
- Unit voltage, three-phase load current, and frequency
- Water temperature and oil pressure
- Fuel level and fuel temperature
Audible and visual alarm indicators with buzzers

Support Systems

DC alternator engine starting system
MCCB air switch for short circuit protection
Combined cooling water tank radiator system for 40°C ambient temperature operation
Comprehensive filtration: oil, fuel, and air filters
Accessories include exhaust elbow, bellows, and muffler
