Product Details:
Place of Origin: China
Brand Name: Genor Power
Certification: ISO9001:2008, CE, CCC
Model Number: GNAW250
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Package / Plywood case
Delivery Time: Within 20 days
Payment Terms: T/T ,L/C ,Western Union, MoneyGram, D/A
Supply Ability: 500/sets per Month
Detailed Product Description
Product Name: 230A Diesel Welder Generator Set Engine Type: Air Cooling Diesel Engine
Welding Current: 20 To 250A Cooling System: Air Cooling
Engine RPM: 1500rpm To 1800rpm Frequency: 50Hz Or 60Hz
Protection Class: IP23 Warranty: 12 Months
High Light:

IP23 Air Cooled Engine Inverter

,

15hp Air Cooled Engine Inverter

,

IGBT Dc Welder Generator

AC single phase air cooled engine inverter dc welder 15hp 230A diesel welder generator set





-Adopt intermediate frequency three-phase rectifier, has the advantages of smoothcurrent, good dynamic characteristics,fast response speed (1-3ms). It can meet different welding requirements,and is suitable for all kinds of acid electrode, basic electrode and argon arc welding works.



-Adopt rare earth permanent magnet technology, has the advantages of smaller size, lighter weight, low iron loss and higher efficiency(efficiency up to 90%).



- Abandon the IGBT (insulated gate bipolar transistor) control system, substituted by adopting the "embedded" control mode, which greatly improve the reliability of the control system.







GENERATOR



Model GNAW160
Frequency(HZ) 50 60
Rated.AC voltage(V) 230 240
Rated output(KVA) 3 3.6
Rated speed(rpm) 3000 3600



WELDER




Welding no-load voltage(V) 90V
Working voltage(V) 20-28
Range of current(A) 20 - 250
Welding efficiency 60%
Power factor (cosΦ ) 1
Phase 1



ENGINE


Engine type Single-cylinder, vertical, 4-stroke air-cooled diesel engine
Bore× stroke(mm) 92×75
Displacement capacity(cc) 496cc
Fuel 0# or -10# light diesel fuel
Lubrication oil volume(L) 1.65
Combustion system Direct lnjection
STANDARD FEATURES Voltmeter yes
AC Output Socket 2
AC circuit breaker yes
Oil warning light yes
Oil alert yes

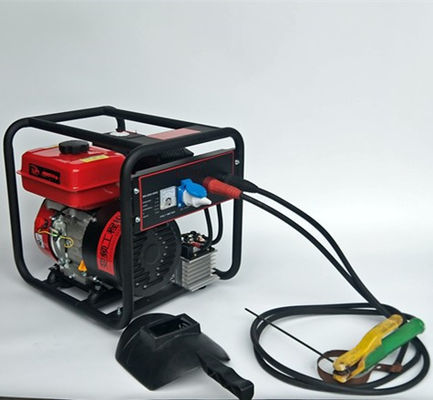

Single Phase IP23 15hp Air Cooled Engine Inverter 230A IGBT 0

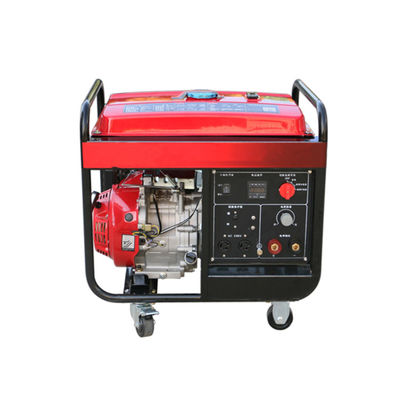

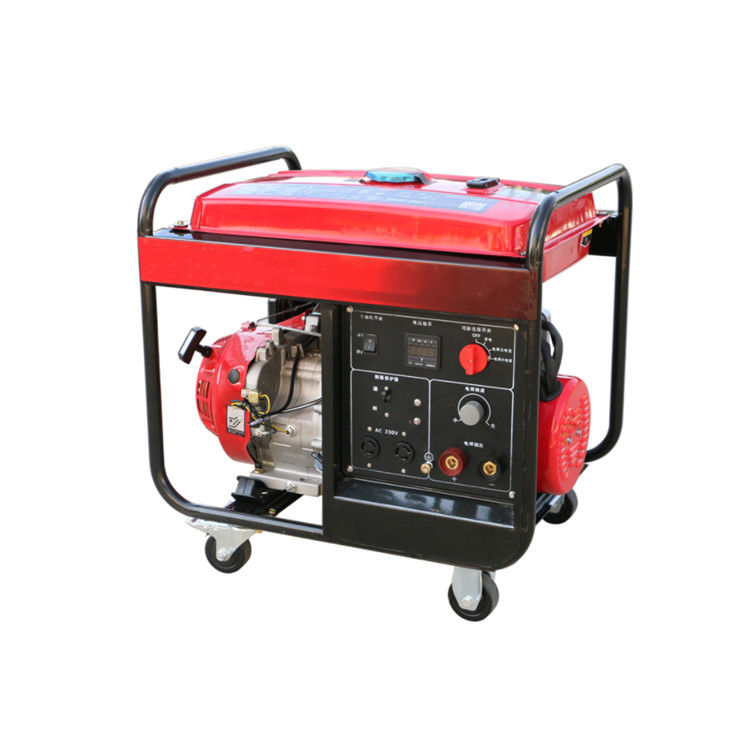

Single Phase IP23 15hp Air Cooled Engine Inverter 230A IGBT 1Single Phase IP23 15hp Air Cooled Engine Inverter 230A IGBT 2
