Miller Big Blue 500Amps engine driven welder TIG Flux Cored welding Yanmar diesel generator

I'm Online Chat Now

Miller Big Blue 500Amps engine driven welder TIG Flux Cored welding Yanmar diesel generator

Miller Big Blue 500Amps engine driven welder TIG Flux Cored welding Yanmar diesel generator
Miller Big Blue 500Amps engine driven welder TIG Flux Cored welding Yanmar diesel generator

Large Image :  Miller Big Blue 500Amps engine driven welder TIG Flux Cored welding Yanmar diesel generator

Product Details:
Place of Origin: China
Brand Name: GENOR POWER
Certification: ISO9001:2008, CE
Model Number: GNRDML
Product name: Miller big blue diesel engine welder
Engine type: heavy duty diesel engine
Alternator: Brushless ,AVR self-exciting
Rated Power: 30kw
Welding current: 400 to 500amp
Frequency: 50Hz or 60Hz
Engine RPM: 1500rpm or 1800rpm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Package / Plywood case
Delivery Time: Within 20 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 sets Per Month
Detailed Product Description
Rated Voltage: 120V , 220V/380V, 440V

Miller Big Blue 500Amps engine driven welder TIG Flux Cored welding Yanmar diesel generator







· Multi process DC diesel driven welding generator, powered by a Perkins 404-22 engine.
  With a maximum output of 500 amps, the auxiliary power of 16Kw , the Big Blue 500X offers exceptional     versatility for site welding.
· Rated Output 500 A, 60% Duty cycle
· Voltage range 14 - 40 VDC ,AUX 220/240 and 110 volts when using a step up transformer
· Amperage range 50 - 500 A







1. Electric Starter ensures easy starting

2. Separate welding range with fine adjustment in each range

3. Great Welding Performance

4. Auxiliary power while welding

5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding

6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

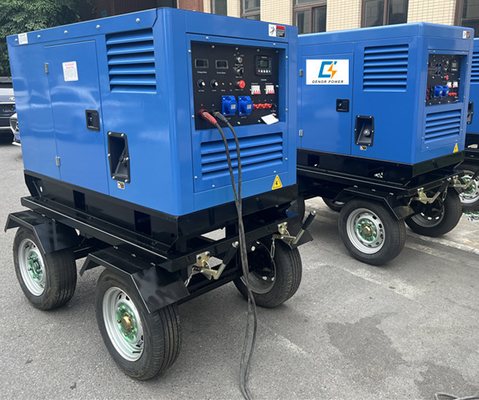

Miller Big Blue 500Amps engine driven welder TIG Flux Cored welding Yanmar diesel generator 0



Model GPW 500 diesel welding generator
Welding output
Welding Processes MMA TIG FCAW
Open Circuit Voltage (V) 75 75 75
Current Range (A) 30-500 30-500 30-500
Welding Current (A) 310 350 500 310 350 500 310 350 500
Welding Voltage (V) 32.4 34 36 22.4 24 26 29.5 31.5 33
Duty Cycle 100% 80% 60% 100% 80% 60% 100% 80% 60%
External Characteristic Curve Drop Characteristic Drop Characteristic Flat Characteristic
Generator output
Power 16Kw
Excitation Type AVR Brushless Excitation
Frequency 50Hz
Phase Three Phase Single Phase
Output Voltage/Power AC 400V/16Kw AC 230V/6.9Kw
Engine
type 4 stroke ,direct injection , water cooled diesel engine
Fuel Diesel
Rated Power 30Kw
Rated Speed 1500 RPM
Low Temperature Pre-heated Start
Warning Type Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity 50L
Cooling Method Water-cooled
Fuel Consumption 5.0L/hr
Complete appliance





Engine Features:



1. World most famous brand diesel engine: Perkins ,Cummins , Kubota



2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection



3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler



4. Machinery or electronic governing



5. Fuel injection pump



6. Electric motor starting system



7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner



8. Low discharge, and low fuel consumption



9. Installed conveniently and maintain easily



Control system:



1. Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.



2. Operation display:



a) Unit voltage, tri-phase load current and frequency display



b) Water temperature, oil pressure display



c) Fuel level, fuel temperature display



d) Audible and visual alarm lamps and buzzers

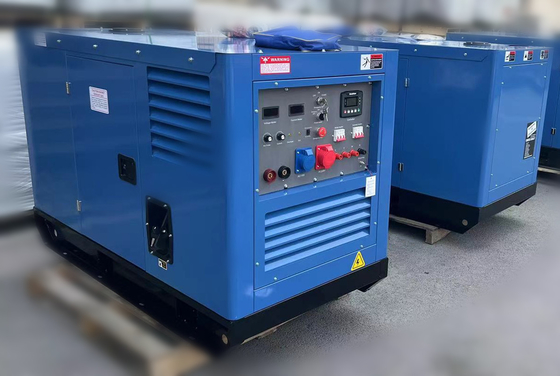

Miller Big Blue 500Amps engine driven welder TIG Flux Cored welding Yanmar diesel generator 1
Miller Big Blue 500Amps engine driven welder TIG Flux Cored welding Yanmar diesel generator 2
