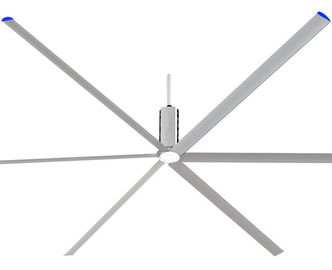

6m Warehouse Large HVLS Industrial Ceiling Fan 20feet silence big air flow remote start

I'm Online Chat Now

6m Warehouse Large HVLS Industrial Ceiling Fan 20feet silence big air flow remote start

6m Warehouse Large HVLS Industrial Ceiling Fan 20feet silence big air flow remote start
6m Warehouse Large HVLS Industrial Ceiling Fan 20feet silence big air flow remote start

Large Image :  6m Warehouse Large HVLS Industrial Ceiling Fan 20feet silence big air flow remote start

Product Details:
Place of Origin: China
Brand Name: Genor
Certification: CSA,CE,CCC , ISO
Model Number: GFAN
Motor Power: 1.5kw
Air Volume: 40,000 - 363,000 CFM
Air Speed: 2 - 3m/s
amount of the blade: 6
Blade Material: Aluminium alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: within 10 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 units / per month
Detailed Product Description
Product Name: Large Ceiling Fan Installation: Ceiling
Rotation Speed: 0 To 50 Rpm Adjustable Motor Brand: Germany Nord
High Light:

industrial hvsl fans

,

industrial style ceiling fans

6m Warehouse Large HVLS Industrial Ceiling Fan 20feet silence big air flow remote start



Our Industrial Ceiling Fan is a new solution of Energy Saving to solve ventilation,
cooling and dehumidification in large indoor place.

It is High Air Volume and Low Rotating Speed

The traditional fan runs at high speed with high power consumption.it is damaged easily and the air covering space is also small .
But our HVLS super ceiling fan runs at low speed to slowly move a lot of air in large area through unique fan blades

Our HVLS Ceiling fan only have 6 blades.

From the center along the blades, blade's width and thickness gradually are narrowed and thin, in accordance with the modern aerodynamical science, the whole blades drive more and even airflow downward, no empty zone in center area.


Mixing the hotter air at roof level with cooler air at floor level to save heating cost in winter.

Our HVLS Super ceiling fans are used in large facilities, warehouses, distribution centers, farms, large retail stores, sports arenas, stations, airports and other large buildings, become a ideal choice for ventilation, cooling and dehumidification of large indoor place.





Advantages



1)High efficient air flow



2)Strengthen the air cycle effectively



3)Low cost and free maintenance



4)Provide cool air flow in summer and hot air cycle in winter



5)Large application area



6)Propeller blades guarantee safety





Environmental Protection



1)Very low enery consumption



2)Provide natural ventilation and lower the temperature effectively



3)Refresh the air continuosly





Specification



Model Diameter Max Speed Covering Spacing Air Volume (CFM) Moter Power Weight
GFAN25 2500mm (8 FT) 129rpm 200m2 40000 0.75kw 70kg
GFAN31 3100mm (10FT) 114rpm 350m2 74000 1.1kw 75kw
GFAN33 3700mm (12FT) 95rpm 500m2 102000 85kg
GFAN43 4300mm (14FT) 83rpm 600m2 114000 110kg
GFAN49 4900mm (16FT) 75rpm 900m2 193000 1.5kw 120kg
GFAN55 5500mm (18FT) 70rpm 1050m2 255000 123kg
GFAN61 6100mm (20FT) 67rpm 1200m2 292000 125kg
GFAN73 7300mm (24FT) 53rpm 1500m2 363000 130kg



Remote Control Big Size Low Power low noise Industrial HVLS giant Ceiling Fans

6m Warehouse Large HVLS Industrial Ceiling Fan 20feet silence big air flow remote start 1
