Product Details:
Payment & Shipping Terms:
|
| High Light: | genset diesel generator,cummins generator set |
||
|---|---|---|---|

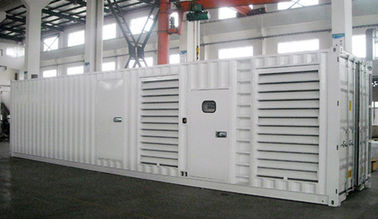

Container type 1000kva power cummins diesel generator 800kw KTA38 - G2A synchronization
1. Genuine Commins industrial diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery governing
The main parameters of the engine | ||
Brand | Cummins | |
Model | KTA38-G2 | |
Spare power | 970KW/1212.5KVA | |
Type | four strokes, waste gas turbine boost,direct spurting type | |
Cooling way | water cooling | |
With type | Inline type | |
Bore*Trip | 159mm*159mm | |
Cylinder | 12 cylinders | |
Displacement | 38L | |
Lubricating Capacity | 100L | |
Speed adjustment way | electronic speed | |
Rotating speed | 1500r/min | |
Starting way | starting with electricity | |
The main parameters of the alternator | ||
Brand | Stamford | |
Model | LVI 634E | |
Type | brushless (AVR automatic voltage regulating) | |
The connecting way of the phase | three phases four lines | |
Insulation degree | H degree | |
TIF | <50 | |
THF | <2% | |
The factor of rated power | ≤±1% | |
Grading Protection | IP23 | |
Unit parameters | ||
Power | 800kw/1000KVA | |
Rated voltage | 400V/230V | |
Rated current | 1440A | |
Rated frequency | 50 HZ | |
The factor of rated power | 0.8 | |
The regulating rate of instantaneous voltage | ≤-15%/ +20% | |
The regulating rate of steady voltage | ≤±1% | |
The time of steady voltage | ≤3sec | |
The waving rate of voltage | ≤0.5% | |
Voltage waveform distortion degree | ≤8% | |
The regulating rate of steady frequency | ≤5% | |
The regulating rate of instantaneous frequency | ≤-10%/+12% | |
The time of steady frequency | 3sec | |
The waving rate of frequency | ≤1.5% | |
The waste of fuel with full load | 206g/kw.h | |
Size(mm) | 4500*1750*2450 | |
Weight(kg) | 8200 | |
Control Panel:
1. Automatic control panel , LCD display
2. Four protection systems
3. Emergency stop
Soundproof/Slient Box:
1. Excellent ventilation
2.Oil tank mounted on base frame for 12 Hours working
3. Highly Corrosion Resistant construction
4. Excellent Access for Maintenance
5. Security and safety
6.1m<80dB/7m<70dB/68dB
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
