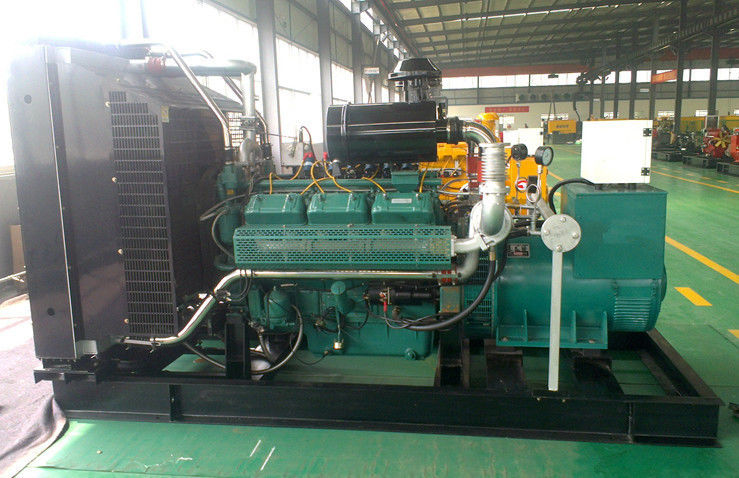

Water Cooled Natural Gas Powered Generator Durable With Stamford Alternator

I'm Online Chat Now

Water Cooled Natural Gas Powered Generator Durable With Stamford Alternator

Water Cooled Natural Gas Powered Generator Durable With Stamford Alternator
Water Cooled Natural Gas Powered Generator Durable With Stamford Alternator

Large Image :  Water Cooled Natural Gas Powered Generator Durable With Stamford Alternator

Product Details:
Place of Origin: China
Brand Name: Genor
Certification: ISO9001:2008, CE
Engine: Gas Engine
Alternator: Stamford, Leroy somer ,Marathon,Engga
Control Panel: Smartgen, Deepsea,ComAp
Rated Power: 20kw to 1000kw
Rated RPM: 1500rpm or 1800rpm
Frequency: 50Hz or 60Hz
Rated Voltage: 120V/208V,220V/380V, 240V/415V
Payment & Shipping Terms:
Price: Negotiable
Detailed Product Description
High Light:

natural gas powered generator

,

biogas generator kit



Water Cooled Natural Gas Powered Generator Durable With Stamford Alternator





1.Option:CHP System,ATS

2 Natural Gas Engine With Original Stamford  Alternator

3.Control panel :Smartgen,Deepea

4.Eletronic Air/Gas mixer

5.Spark Plug : USA Altronic



Specifications:

Genset Model

Prime Power

Standby Power

Cylinder No.

Dimension       (L×B×H)mm

KW

KVA

KW

KVA

GNPG20

20

25

22

27.5

4

2100*730*1575

GNPG41

30

37.5

33

41

4

2100*730*1670

GNPG55

40

50

44

55

4

2100*880*1450

GNPG78

56

70

62.4

78

4

2100*730*1670

GNPG104

75

94

83

104

6

2490*830*1770

GNPG138

100

125

110

137.5

6

2490*830*1770

GNPG165

120

150

132

165

6

2680*860*1730

GNPG200

145

182

160

200

6

2680*860*1730

GNPG220

160

200

176

220

6

2680*860*1730

GNPG275

200

250

220

275

6

2800*1090*1715

GNPG308

224

280

246

308

6

2930*1100*1650

GNPG344

250

312

275

344

6

2930*1100*1650

GNPG413

300

375

330

413

8

3485*1155*1640

GNPG495

360

450

396

495

8

3600*1355*1910

GNPG550

400

500

440

550

8

3600*1355*1910

GNPG605

440

550

484

605

8

3600*1355*1910

GNPG688

500

625

550

688

8

3720*1640*2040

GNPG880

640

800

704

880

8

4660*2090*2320

GNPG1000

728

910

800

1000

12

4660*2090*2320

GNPG1141

830

1038

913

1141

12

4660*2090*2320



Main Performance Advantages:

1. Long life span. gas engine is designed and developed through the cooperation between China Cummins

. Based on Cummins durable engine body, the gas engine life span reaches 30 years.

2. Long designed overhaul term: 25000 ~ 30000 hours.

3. Total cogeneration efficiency is over 85%, higher than other China brands by 10%.

4. Four air valves designing for each cylinder. Sufficient air intaking and exhausting to realize maximum power output.

5. Easy access to spare parts. Based on Cummins engine body, almost 85% parts are made in Cummins factory. it's very convenient to find any parts at any time and anywhere.

6. Electronic Air/Gas mixer. The mixer guarantees optimum air-fuel ratio, improves thermal efficiency, reduces NOx emission. Unique air-fuel ratio adjusting system suits 30% ~ 90% methane density.

7. Ignition system. Altronic ignition system imported from USA ensures high-precision ignition, which enhances genset life span and stability.



Alternator Features:

1. World famous brand AC alternator: Leroy Somer, Stamford, Marathon, ENGGA

2. Brushless, 4 poles, rotation magnet

3. IP21-23(NEMA1) enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof



Digital Control panel

Controller Brand: Smartgen, Deepsea,ComAp

Control Panel: English interface,LED screen and touch buttons.

Main Functions:

1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown



Standard Scope of Supply

1. Brand new Gas engine .

2. Brand new Leroy Somer AC brushless alternator IP23

3. Smartgen Control Panel.

4. Ignition system,including: ECU, Spark plug, High-voltage electricity wire;Ignition switch,Ignition coil;Wires.

5. Electronic speed regulator,including controller and actuator.

6. Solenoid valve

7. Flame arrester.

8. Hand valve

9. Zero pressure valves

10. Mixer.

11. Air filter.

12. Silencer

13. Remote radiator

14. Air circuit breaker (For the protecting purpose of overload, over current, etc)

15. Rubber anti-vibration pad between engine, alternator, control panel and base frame

16.Standard accessories, anti-vibration pad, exhaust pipe, maintenance tools kit, filters

17. Maintenance Operating manual, Quality certificate, Gen-sets ex-factory test report
