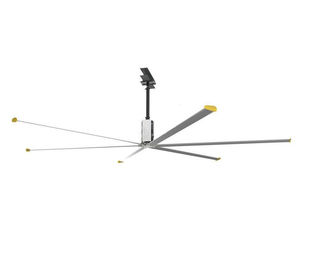

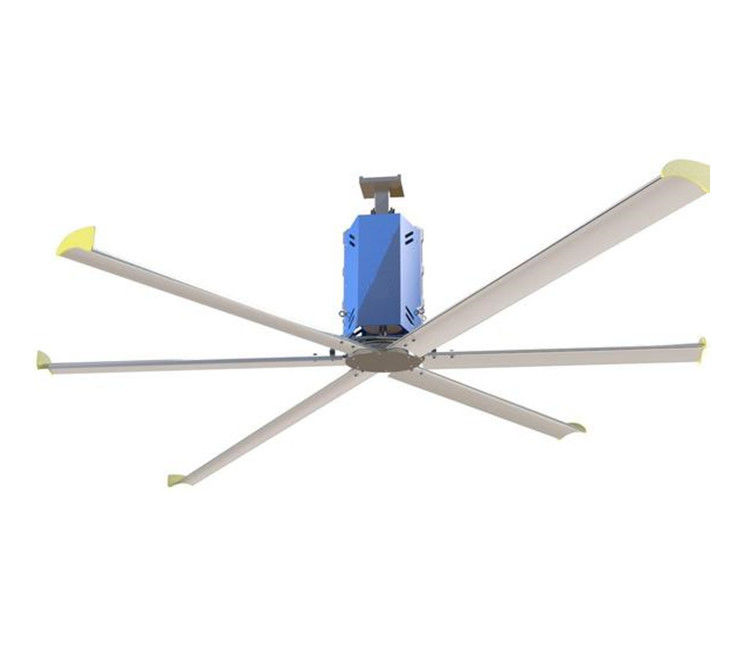

Large Image :  6 Blade 8ft 10ft VDF Speed HVLS Industrial Ceiling Fans

Product Details:
Place of Origin: China
Brand Name: Genor
Certification: CSA,CE,CCC
Model Number: GFAN
Product name: Commercial HVLS ceiling fan
Motor brand: Germany Nord
Air Speed: 2-3m/s
amount of the blade: 6
Blade Material: Aluminium alloy
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wood package
Delivery Time: within 8 days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 200 set / month
Detailed Product Description
High Light:

10ft Industrial Ceiling Fans

,

HVLS Industrial Ceiling Fans

,

6 Blade HVLS Ceiling Fans

Commercial Air Cooling Big HVLS industrial Ceiling Fans 8ft 10ft VDF speed silence





1. Large Air Volume, Low Rotating Speed
2. 14ft four blades with aerodynamic design
3. Low Power Consumption
4. CSA,CE,CCC Certificate



Our super ceiling fan is a new solution of Energy Saving to solve ventilation,
cooling and dehumidification in large indoor place.



It is High Air Volume and Low Rotating Speed
 The traditional fan runs at high speed with high power consumption.it is damaged easily and the air covering space is also small .

But our HVLS super ceiling fan runs at low speed to slowly move a lot of air in large area through unique fan blades

Our HVLS Ceiling fan only have 6 blades.

From the center along the blades, blade's width and thickness gradually are narrowed and thin, in accordance with the modern aerodynamical  science, the whole blades drive more and even airflow downward, no empty zone in center area.

The streamline design of the (windward side)  cross-sectional of the blade decreases the airflow resistance.Spire of the blade tilts up 3 degrees than the root part, conical air flow instead of cylinder one can directly cover a larger area and it makes airflows much more similar to natural intermittent wind.

For our super ceiling fan , The powerful blades with aerodynamic design move much more indoor air,
keeping the surface of the goods dry in wet season.


Mixing the hotter air at roof level with cooler air at floor level to save heating cost in winter.

Our HVLS Super ceiling fans are used in large facilities, warehouses, distribution centers, farms, large retail stores, sports arenas, stations, airports and other large buildings, become a ideal choice for ventilation, cooling and dehumidification of large indoor place.



Advantages

1)High efficient air flow

2)Strengthen the air cycle effectively

3)Low cost and free maintenance

4)Provide cool air flow in summer and hot air cycle in winter

5)Large application area

6)Propeller blades guarantee safety





Specification





Model Diameter Max Speed Covering Spacing Air Volume (CFM) Moter Power Weight
GFAN25 2500mm (8 FT) 129rpm 200m2 40000 1.1kw 70kg
GFAN31 3100mm (10FT) 114rpm 350m2 74000 75kw
GFAN33 3700mm (12FT) 95rpm 500m2 102000 85kg
GFAN43 4300mm (14FT) 83rpm 600m2 114000 110kg
GFAN49 4900mm (16FT) 75rpm 900m2 193000 1.5kw 120kg
GFAN61 6100mm (20FT) 67rpm 1200m2 292000 125kg
GFAN73 7300mm (24FT) 53rpm 1500m2 363000 130kg
