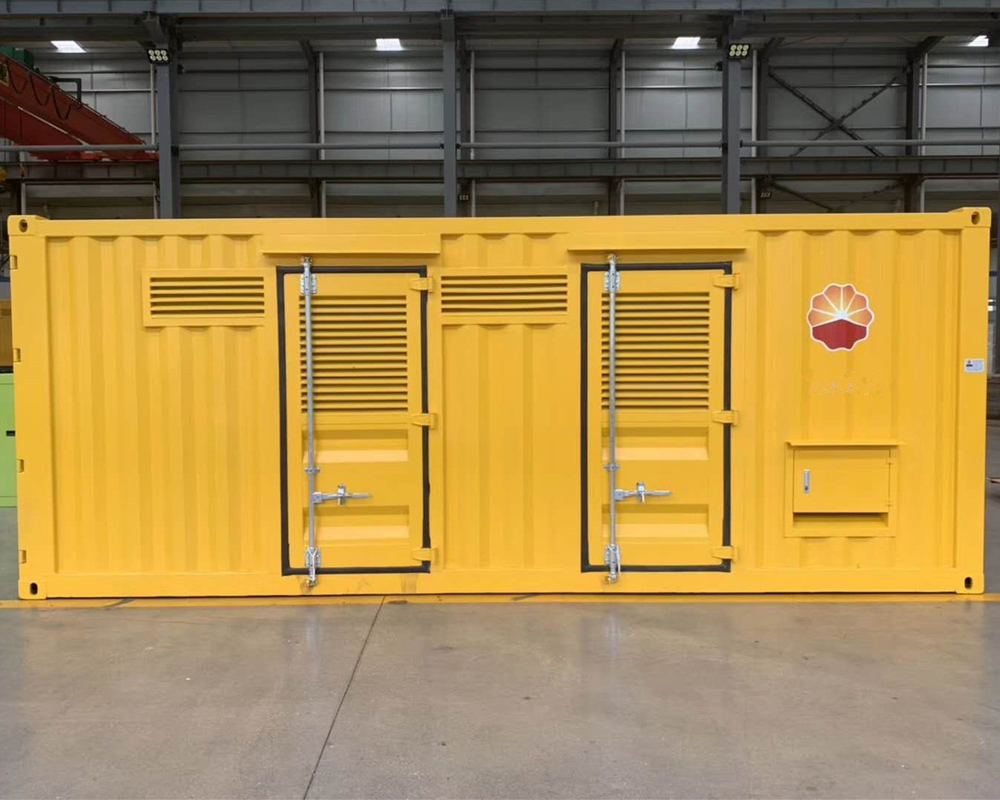

ISO 350kw 500kw Electric Power Packs For Railway Reefer Container

ISO 350kw 500kw Electric Energy Supply Station Power Packs for railway reefer container

The energy station power pack is manufactured and rated according to continuous power output as outlined in ISO-8528, overload power in accordance with ISO-3046.

The reefer container power pack is powered by water-cooled, heavy-duty, industrial type cummins diesel engine that is closed couple via SAE flexible disk/flange coupling to the brushless, synchronous, self-regulated alternator.

power pack Engine Features:

1. water-cooled, heavy-duty, industrial type

2. Cummins Multi-cylinder in-line or veer engine, 4-stroke, direct injection

3. Turbocharged, water cooled or turbocharged with air intercooler

4. Electronic governing

5. Fuel injection pump

6. Electric motor starting system

Power packs Alternator Features:

1. World famous brand stamford AC alternator Leroysomer

2. Brushless, 4 poles, rotation magnet

3. IP23 enclose is standard for all industrial alternators

4. H class insulation system

5. AVR self-regulated, voltage regulation rate: ≤±1%

6. 60Hz , 460V ,3phase

7. Wide range of flange adaptors and single bearing disc coupling

8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

Power pack Control system:

1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
1) Unit voltage, tri-phase load current and frequency display
2) Water temperature, oil pressure display
3) Fuel level, fuel temperature display
4) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch

Why Choose US:

1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design

2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC

3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution

4. Experienced R&D team, be customer's professional power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement
