| Alternator: | Brushless | Control Panel: | DSE 6120 |
|---|---|---|---|
| Rated Power: | 30kva | Rated RPM: | 1500rpm |
| Frequency: | 50Hz | Rated Voltage: | 220V/380V |
| High Light: | 30kva FAW Genset Diesel Generator,25kw Genset Diesel Generator,30kva FAW Diesel Generator |
||

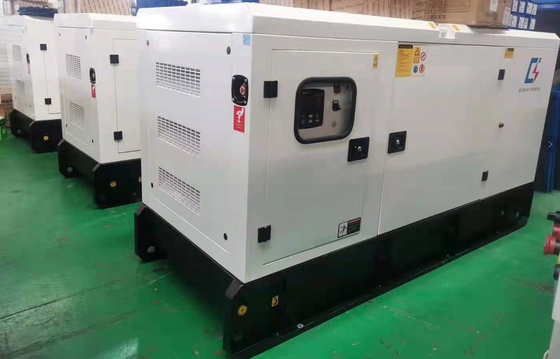

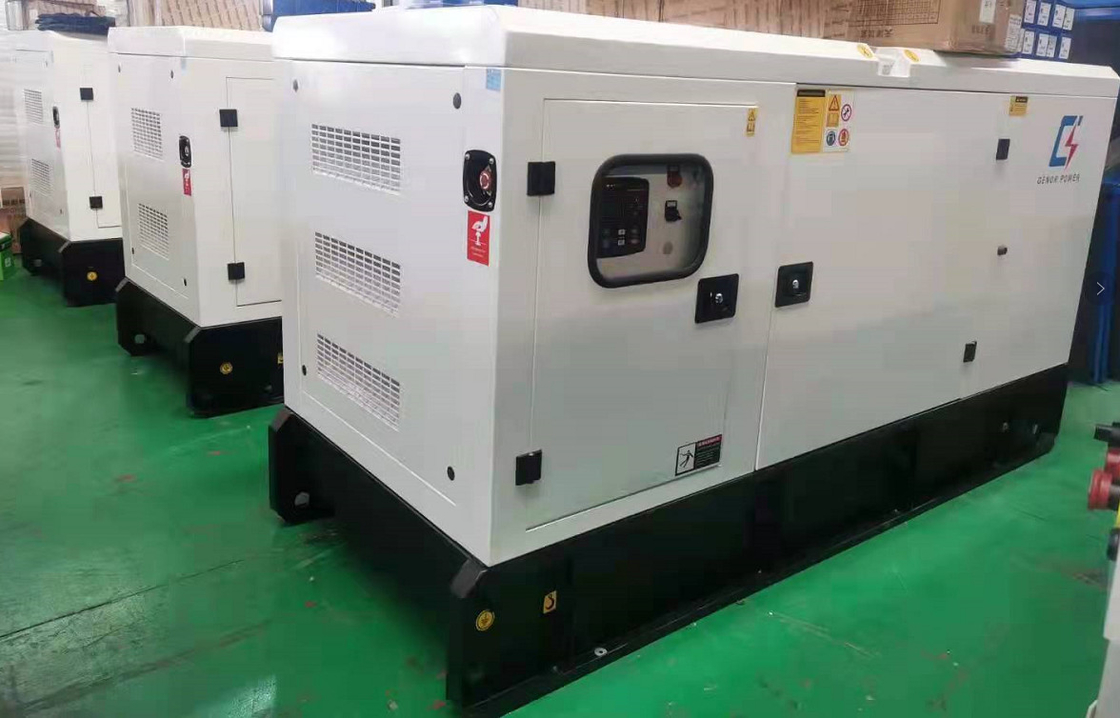

25kw 65kw 30kva FAW Genset Diesel Generator Dse 6120 Controller
25kw 30kva Chinese Xichai 4DW93 FAW Engine Diesel Generator 65kw Dse6120 controller
Advantage of FAW engine Diesel Generator
l Special structure design, perfect portability
l Reliable dynamic performance
l Easy installation and connection.
l Low noise running within 60dBA at 7meters.
l Low fuel consumption .
l Compact and attractive aesthetic outlooking.
l 15 months or 1500 running hours warranty, whichever comes first.
l ISO and CE certificated.
|
FAWD Engine Data |
|
|
Engine Model |
4DW92-35D |
|
Number of Cylinders |
4 |
|
Aspiration |
Natural |
|
Bore×Stroke |
105mm x115mm |
|
Displacement |
2.2L |
|
Prime Power/Speed |
26KW / 1500rpm |
|
Standby Power/Speed |
29KW / 1500rpm |
|
Speed Governor |
Mechanical |
|
Cooling System |
Forced water cooling cycle |
|
Alternator Data |
|
|
Optional brands |
Stamford / Leroy somer |
|
Prime power |
25KVA |
|
Frequency/speed |
50Hz/1500rpm |
|
Exciter type |
Brushless, Self-excited |
|
Power factor |
0.8 |
|
Voltage adjust range |
≥5% |
|
Voltage regulation NL-FL |
≤±1% |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
| Control Panel | |
| Optional brands | Deespea/SmartGen/ComAp |
