300Amp diesel welding generator

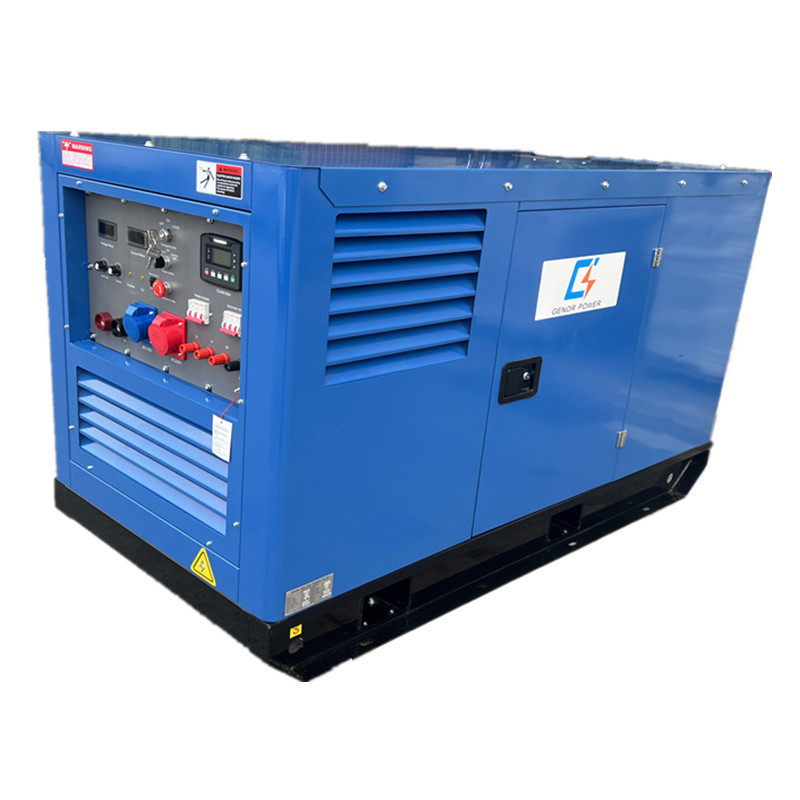

Large Image : 300Amp diesel welding generator

Product Details:

Place of Origin:	China
Brand Name:	GENOR POWER
Certification:	ISO , CE, CCC
Model Number:	ONRW-300LS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 20 days
Payment Terms:	T/T ,L/C ,Western Union
Supply Ability:	200/sets per Month

Contact Now

Detailed Product Description

Product Name:	300A Diesel Welding Generator	Engine Type:	Industrial Heavy Duty Enigne
Welding Current:	300 Ampere	Cooling System:	Water Cooled
Excitation Type:	AVR Brushless	Protection Class:	IP23
Start System:	Electric Start
Highlight:	300Amp diesel generator , 300Amp welding generator , 300Amp diesel welding generator

300Amp diesel welding generator

The 300Amp diesel welding generator is equipped with industrial heavy duty diesel engine driven welding machines with Strong auxiliary generator .

The diesel weldIing generator adopt advanced inverter soft switch technology, PWM control technology, and negative feedback control technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

Model	ONRW-300LS
Rated output	single 7.9/8.74kW
Rated Current	Single 260/280amp
Voltage	Single 30.4/31.2V
Welding Current Range	Single 30-280 / 30-300A
Rated duty	100%
Applicable electrode	Single Ø2.0 - 6.0mm

AC power
Frequency	50/60Hz
Rated output	10.4/11.4kVA
Voltage	200/220/230/240V or 380/440V
Voltage	3-Phase, 4 wire
Power Factor	0.8

Engine	Weichai - WP2.3D25E200
Fuel	Diesel
Fuel Consumption	2.53L/h
Tank Capacity	50L
Tank Capacity	17007001200mm
Weight	500KG

300Amp diesel welding generator 0
