Silent 500A 400Amp Mig Tig DC Welder Diesel powered Integrated Generator and Welding Machine

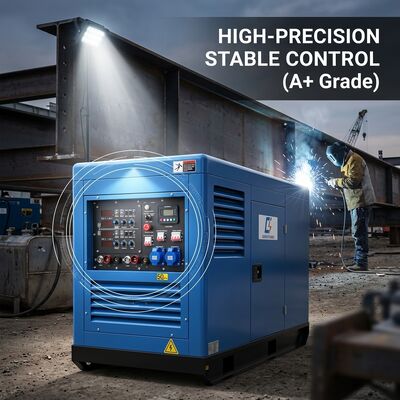

Large Image : Silent 500A 400Amp Mig Tig DC Welder Diesel powered Integrated Generator and Welding Machine

Product Details:

Place of Origin:	China
Brand Name:	GENOR POWER
Certification:	ISO , CE, EPA
Model Number:	ONRWL400

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD$3539 to USD$6825
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 20 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	200/sets per Month

Contact Now

Detailed Product Description

Product Name:	400A Diesel Powered Integrated Generator And Welding Machine	Engine Type:	Industrial Heavy Duty Enigne
Welding Current:	400 Ampere	Weld Current Range:	20-400A
Weld Voltage:	15 - 40V	Cooling System:	Water Cooled
Duty Cycle:	60%	Welding Process:	Stick , Mig , Tig , Arc Gouging
Weld Mode:	Single / Dual	Application:	Construction , Mining , Pipe Welding
Highlight:	Silent 500A diesel welder generator , 400Amp MIG TIG DC welder , Diesel powered welding machine with generator

Silent 500A 400Amp MIG TIG DC Welder with Integrated Diesel Generator

This diesel-powered integrated generator and welding machine combines a heavy-duty diesel engine with advanced welding technology to deliver reliable power for Stick, TIG, MIG, and Flux-Cored welding applications. Engineered for exceptional performance in diverse environments from extreme heat to cold climates, this unit ensures high-quality welding on pipelines and various industrial applications while serving as a dependable power source.

Advanced Welding Technology

Incorporating advanced inverter soft switch technology, PWM control technology, and negative feedback control technology, this welding generator delivers excellent dynamic quality and superior welding performance across the full voltage and current regulation range.

Welding Specifications

Parameter	Specification
Welding Current Range	20A - 400A
Rated Welding Current	400A
Operating Voltage	> 36V
No-load Voltage	70V - 90V

Generator Output

Feature	Specification
Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Three Phase Output	AC 380V/15Kw
Single Phase Output	AC 220V/5Kw

Engine Specifications

Parameter	Specification
Engine Type	4 stroke, 4 cylinder, direct injection, heavy duty diesel
Fuel Type	Diesel
Engine Power	≥ 30kW / 40hp
Rotation Speed	≤ 1800 rpm
Engine Cooling	Liquid/Air
Fuel Tank Capacity	60L - 120L

Auxiliary Power Generator

Built-in auxiliary generator provides 220/380V power with 4-7 kVA capacity for operating power tools and active load consumers including incandescent lamps, heaters, and soldering irons.

Additional Equipment & Features

Ballast rheostat for current regulation
Complete welding cables, electrode holder, and welder's shield
"Vector" type cutter (510mm) for manual steel cutting (3-300mm thickness)
Gas and oxygen reducer with 20m propane and oxygen hoses
Extended maintenance tool set with additional tool box
Preheating system for cold starts below -25°C
Weather protection shelters for welding sites
Power tools for edge machining and joint preparation
Light alarm and automatic emergency protection system
Night work lamp and tire pumping device
Electric fuel level indicator and hour counter
Remote start cables from external source
Electrode drying device
Anti-rollback stops (2 pieces)
ONC-VN-1-7/30-P1 socket
Spare wheel included

Trailer Chassis Design

The trailer chassis is engineered for operation with vehicles featuring traction devices, electrical outlets, safety chain attachments, and additional stops to maintain horizontal positioning during transport and operation.
