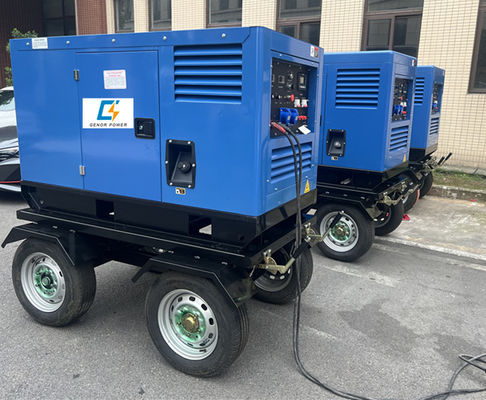

Mobile chassis wheels 450A DC Mig welding machine 500Amps diesel welder generator with wire feeder

Large Image : Mobile chassis wheels 450A DC Mig welding machine 500Amps diesel welder generator with wire feeder

Product Details:

Place of Origin:	China
Brand Name:	GENOR POWER
Certification:	ISO9001:2008, CE
Model Number:	GPW500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD$4135 to USD$7325
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 20 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	200 sets Per Month

Contact Now

Detailed Product Description

Product Name:	Diesel Mig Welder	Welding Type:	MMA . MIG
Welding Voltage:	30 To 40 V	Engine RPM:	1500rpm
Frequency:	50Hz	Welding Current:	500amp
Highlight:	450A DC MIG welding machine , 500Amps diesel welder generator , welding machine with wire feeder

Mobile Chassis Wheels 450A DC MIG Welding Machine - 500 Amp Diesel Welder Generator with Wire Feeder

This mobile diesel welding generator combines powerful welding capabilities with reliable power generation in a portable chassis-mounted unit. Designed for industrial applications, it offers multiple welding processes and substantial auxiliary power output.

500 Amp Diesel Welding Machine Features

Available in single position (MMA/TIG/FCAW) or dual position (MMA plus FCAW) configurations for flexible operation
FCAW process supports efficient "filling & covering" welding with compatibility for Lincoln/Miller wire feeders
Strong auxiliary power output: Maximum 30KW capacity
Advanced inverter technology with soft switch, PWM control, and negative feedback for superior welding performance
Excellent dynamic quality and stable welding performance across full voltage/current regulation range

Technical Specifications - Model GPW 500 Diesel Welding Generator

Welding Output

Welding Processes	MMA	TIG	FCAW
Open Circuit Voltage (V)	75	75	75
Current Range (A)	30-500	30-500	30-500
Welding Current (A)	310 \| 350 \| 500	310 \| 350 \| 500	310 \| 350 \| 500
Welding Voltage (V)	32.4 \| 34 \| 36	22.4 \| 24 \| 26	29.5 \| 31.5 \| 33
Duty Cycle	100% \| 80% \| 60%	100% \| 80% \| 60%	100% \| 80% \| 60%
External Characteristic Curve	Drop Characteristic	Drop Characteristic	Flat Characteristic

Generator Output

Power	16Kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase \| Single Phase
Output Voltage/Power	AC 400V/16Kw \| AC 230V/6.9Kw

Engine Specifications

Type	4 stroke, direct injection, water cooled diesel engine
Fuel	Diesel
Rated Power	30Kw
Rated Speed	1500 RPM
Low Temperature Start	Pre-heated Start
Warning Type	Water Temperature / Oil Pressure / Battery Voltage
Fuel Capacity	50L
Cooling Method	Water-cooled
Fuel Consumption	5.0L/hr

Welder Alternator Features

World famous brand brushless AC alternator
Brushless, 4 poles, rotation magnet design
IP21-23 (NEMA1) enclosure standard for industrial applications
H class insulation system for maximum reliability
AVR self-regulated with voltage regulation rate: ≤±1%
Rated Voltage options: 127V/220V, 220V/380V, 230V/400V

Control System

Automatic Alarm System

Comprehensive acousto-optic alarm system with arrestor protection for start defeat, water over-temperature, low oil pressure, over-speed, over-load, and over-current conditions.

Operation Display
