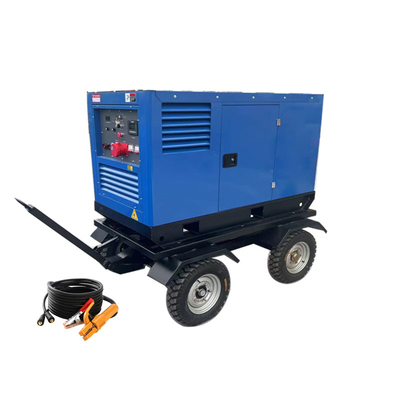

20kw power 4 stroke diesel engine generator 800Amps 400A Mobile Welding Unit on pneumatic wheeled trailer

Large Image : 20kw power 4 stroke diesel engine generator 800Amps 400A Mobile Welding Unit on pneumatic wheeled trailer

Product Details:

Place of Origin:	China
Brand Name:	GENOR POWER
Certification:	ISO9001:2008, CE
Model Number:	GNDML500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden Package / Plywood case
Delivery Time:	Within 20 days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	200 sets Per Month

Contact Now

Detailed Product Description

Product Name:	Diesel Motor Welder	Welding Type:	Arc
Welding Voltage:	30 To 40 V	Engine RPM:	1500rpm
Frequency:	50Hz	Welding Current:	400amp
Highlight:	Diesel Motor Welder DC Generator Set , Arc Welding DC Generator Set , DC Generator Set With Yanmar Engine

20kw power 4 stroke diesel engine generator 800Amps 400A Mobile Welding Unit on pneumatic wheeled trailer

400amp Diesel Welding unit Features:

1. We Can offer both single position welding machine with MMA/TIG/FCAW function and dual positions welding machine whith MMA plus FCAW function, convenient for customer's choice

2. FCAW meets "filling & covering"welding process,fast,effective,and timesaving,can match Lincoln/Miller wire feeder.Strong auxiliary power: Max 30KW output .

3. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

Model	GPW 400 diesel welding generator
Welding output
Welding Processes	MMA			TIG			FCAW
Open Circuit Voltage (V)	75			75			75
Current Range (A)	30-400			30-400			30-400
Welding Current (A)	310	350	500	310	350	500	310	350	500
Welding Voltage (V)	32.4	34	36	22.4	24	26	29.5	31.5	33
Duty Cycle	100%	80%	60%	100%	80%	60%	100%	80%	60%
External Characteristic Curve	Drop Characteristic			Drop Characteristic			Flat Characteristic
Generator output
Power	16Kw
Excitation Type	AVR Brushless Excitation
Frequency	50Hz
Phase	Three Phase					Single Phase
Output Voltage/Power	AC 400V/16Kw					AC 230V/6.9Kw
Engine
type	4 stroke ,direct injection , water cooled diesel engine
Fuel	Diesel
Rated Power	22Kw
Low Temperature	Pre-heated Start
Warning Type	Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity	50L
Cooling Method	Water-cooled
Fuel Consumption	5.0L/hr
Complete appliance

Control system:

1. Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.

2. Operation display:

a) Unit voltage, tri-phase load current and frequency display

b) Water temperature, oil pressure display

c) Fuel level, fuel temperature display
