Perkins Engine Diesel Welder Generator 10A - 500A DC Current MMA / TIG Mobile Trailer Type

I'm Online Chat Now

Perkins Engine Diesel Welder Generator 10A - 500A DC Current MMA / TIG Mobile Trailer Type

Perkins Engine Diesel Welder Generator 10A - 500A DC Current MMA / TIG Mobile Trailer Type
Perkins Engine Diesel Welder Generator 10A - 500A DC Current MMA / TIG Mobile Trailer Type

Large Image :  Perkins Engine Diesel Welder Generator 10A - 500A DC Current MMA / TIG Mobile Trailer Type

Product Details:
Place of Origin: China
Brand Name: Genor Power
Certification: ISO9001:2008, CE, CCC
Model Number: GNAW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Wooden Package / Plywood case
Delivery Time: Within 20 days
Payment Terms: T/T ,L/C ,Western Union, MoneyGram, D/A
Supply Ability: 200/sets per Month
Detailed Product Description
Product Name: Perkins Diesel Engine Welding Generator Engine Type: 4 Strok ,direct Injection ,Diesel Engine
Welding Current: 500Amps Cooling System: Water Cooled
Excitation Type: AVR Brushless Excitation Engine RPM: 1500rpm
Frequency: 50Hz Protection Class: IP23
Start System: Electric Start
High Light:

engine driven welder generator

,

genset welder generators

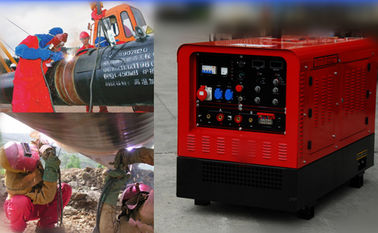

Mobile Trailer Type Perkins Engine Diesel Welder Generator 10A - 500A DC Current MMA / TIG



Advange:

1. Perkins Diesel  Engine with Electric Starter ensures easy starting

2. Separate welding range with fine adjustment in each range

3. Great Welding Performance

4. Auxiliary power while welding

5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding

6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.



The Perkins diesel engine welder  is composed of perkins engine driven welding machines with MMA/TIG/FCAW function, and Strong auxiliary power: 20 KW output for three-phase, 7KW output for single-phase .



The diesel welder generator adopt advanced inverter soft switch technology, PWM control technology, and negative feedback control technology , enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.



Perkins Engine Diesel Welder Generator 10A - 500A DC Current MMA / TIG Mobile Trailer Type 0


Welding Processes MMA TIG FCAW
Open Circuit Voltage (V) 75 75 75
Current Range (A) 30-500 30-500 30-500
Welding Current (A) 387 430 500 387 430 500 387 430 500
Welding Voltage (V) 35.5 37.2 40 25.5 27.2 30 33.3 35.5 39
Duty Cycle 100% 80% 60% 100% 80% 60% 100% 80% 60%
External Characteristic Curve Drop Characteristic Drop Characteristic Flat Characteristic
Generator output
Power 20Kw
Excitation Type AVR Brushless Excitation
Frequency 50Hz  or  60Hz
Phase Three Phase Single Phase
Output Voltage/Power AC 400V/20Kw AC 230V/6Kw
Engine
Engine type  4 stroke , direct injection , heavy duty diesel engine
Fuel Diesel
Rated Power 26Kw
Rated Speed 1500 RPM
Low Temperature Pre-heated Start
Warning Type Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity 60L
Cooling Method Water-cooled
Fuel Consumption 5.6L/hr
Complete appliance
Weight 710kg
Dimension(mm) 1500×800×1100
Protection Class IP23




Perkins Engine Diesel Welder Generator 10A - 500A DC Current MMA / TIG Mobile Trailer Type 1

   Perkins Engine Diesel Welder Generator 10A - 500A DC Current MMA / TIG Mobile Trailer Type 2

Perkins Engine Diesel Welder Generator 10A - 500A DC Current MMA / TIG Mobile Trailer Type 3
